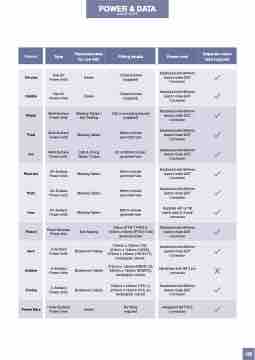

POWER & DATA
USAGE GUIDE
Product
Type
Recommended for use with
Fitting details
Power cord
Separate mains lead required
Chroma
Clip-On Power Units
Desks
Clamp bracket (supplied)
Hardwired with 800mm lead to male GST Connector
✓
Hubble
Clip-On Power Units
Desks
Clamp bracket (supplied)
Hardwired with 800mm lead to male GST Connector
✓
Phase
Multi-Surface Power Units
Meeting Tables / Soft Seating
Clip-on mounting bracket (supplied)
Hardwired with 800mm lead to male GST Connector
✓
Pixel
Multi-Surface Power Units
Meeting Tables
80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
Ion
Multi-Surface Power Units
Café & Dining Tables / Desks
60 or 80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
Pixel Arc
On-Surface Power Units
Meeting Tables
80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
Pluto
On-Surface Power Units
Meeting Tables
80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
Inca
On-Surface Power Units
Meeting Tables
Soft Seating
80mm circular grommet hole
50mm (PTN-1T-KG) & 103mm x 50mm (PTN-1T/2S) grommet holes
Supplied with a 1M mains lead to 3 pole connector
Hardwired with 800mm lead to male GST Connector
✓
Proton
Panel Mounted Power Unit
✓
Aero
In-Surface Power Units
Boardroom Tables
215mm x 132mm (1S), 215mm x 132mm (1S/2D), 272mm x 132mm (1S/1D/1T), rectangular cutouts
Hardwired with 800mm lead to male GST Connector
✓
Eclipse
In-Surface Power Units
Boardroom Tables
272mm x 132mm (ENDD1-2), 430mm x 132mm (ENDD4), rectangular cutouts
Hardwired with 3M 3 pin connector
X
Tholus
In-Surface Power Units
Boardroom Tables
192mm x 132mm (THL-1), 272mm x 132mm (THL-2), rectangular cutouts
Hardwired with 800mm lead to male GST Connector
✓
Power Bars
Under-Surface Power Units
Desks
No fitting required
Integrated GST18-3 connectors
✓
