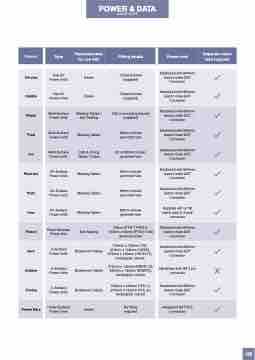

 POWER & DATA
USAGE GUIDE
          Product
Type
Recommended for use with
Fitting details
Power cord
Separate mains lead required
            Chroma
Clip-On Power Units
Desks
Clamp bracket (supplied)
Hardwired with 800mm lead to male GST Connector
✓
        Hubble
Clip-On Power Units
Desks
Clamp bracket (supplied)
Hardwired with 800mm lead to male GST Connector
✓
           Phase
Multi-Surface Power Units
Meeting Tables / Soft Seating
Clip-on mounting bracket (supplied)
Hardwired with 800mm lead to male GST Connector
✓
           Pixel
Multi-Surface Power Units
Meeting Tables
80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
           Ion
Multi-Surface Power Units
Café & Dining Tables / Desks
60 or 80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
         Pixel Arc
On-Surface Power Units
Meeting Tables
80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
        Pluto
On-Surface Power Units
Meeting Tables
80mm circular grommet hole
Hardwired with 800mm lead to male GST Connector
✓
           Inca
On-Surface Power Units
Meeting Tables
   Soft Seating
80mm circular grommet hole
50mm (PTN-1T-KG) & 103mm x 50mm (PTN-1T/2S) grommet holes
Supplied with a 1M mains lead to 3 pole connector
Hardwired with 800mm lead to male GST Connector
✓
        Proton
Panel Mounted Power Unit
✓
           Aero
In-Surface Power Units
Boardroom Tables
215mm x 132mm (1S), 215mm x 132mm (1S/2D), 272mm x 132mm (1S/1D/1T), rectangular cutouts
Hardwired with 800mm lead to male GST Connector
✓
        Eclipse
In-Surface Power Units
Boardroom Tables
272mm x 132mm (ENDD1-2), 430mm x 132mm (ENDD4), rectangular cutouts
Hardwired with 3M 3 pin connector
X
         Tholus
In-Surface Power Units
Boardroom Tables
192mm x 132mm (THL-1), 272mm x 132mm (THL-2), rectangular cutouts
Hardwired with 800mm lead to male GST Connector
✓
           Power Bars
Under-Surface Power Units
Desks
No fitting required
Integrated GST18-3 connectors
✓
